W25Q16BV
11.2.28 Read Manufacturer / Device ID Dual I/O (92h)
The Read Manufacturer / Device ID Dual I/O instruction is an alternative to the Read Manufacturer /
Device ID instruction that provides both the JEDEC assigned manufacturer ID and the specific device ID
at 2x speed.
The Read Manufacturer / Device ID Dual I/O instruction is similar to the Fast Read Dual I/O instruction.
The instruction is initiated by driving the /CS pin low and shifting the instruction code “92h” followed by a
24-bit address (A23-A0) of 000000h, 8-bit Continuous Read Mode Bits, with the capability to input the
Address bits two bits per clock. After which, the Manufacturer ID for Winbond (EFh) and the Device ID
are shifted out 2 bits per clock on the falling edge of CLK with most significant bits (MSB) first as shown in
figure 27. The Device ID values for the W25Q16BV is listed in Manufacturer and Device Identification
table. If the 24-bit address is initially set to 000001h the Device ID will be read first and then followed by
the Manufacturer ID. The Manufacturer and Device IDs can be read continuously, alternating from one to
the other. The instruction is completed by driving /CS high.

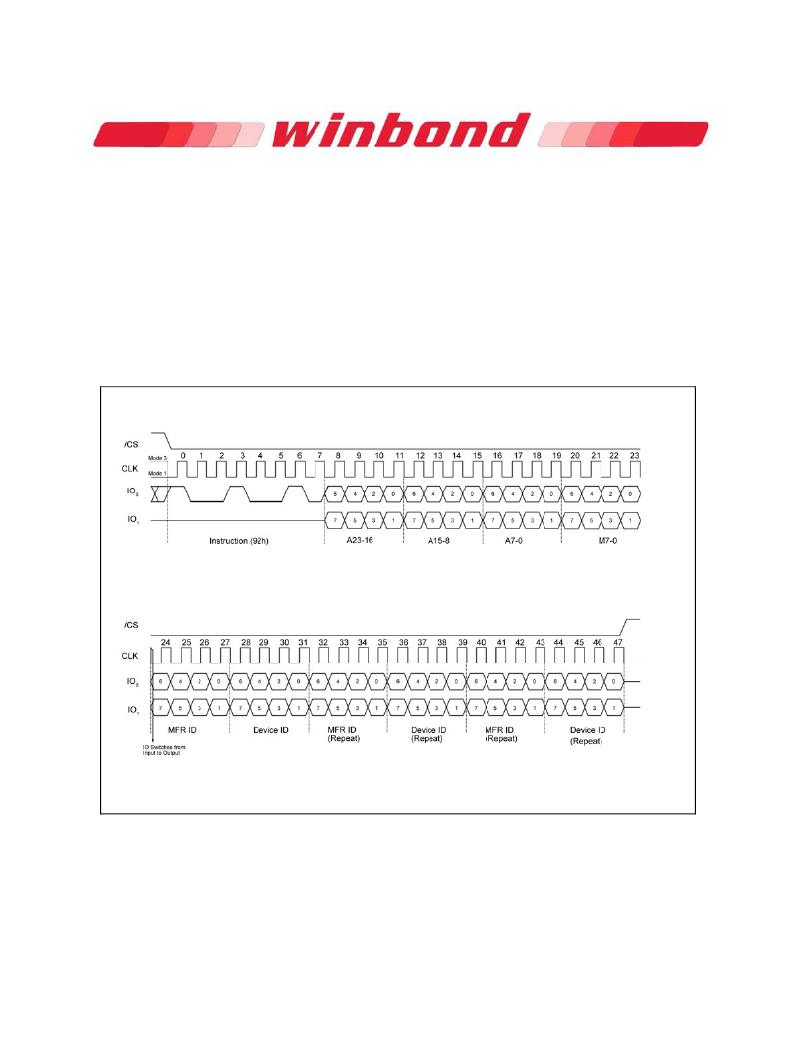

Figure 27. Read Manufacturer / Device ID Dual I/O Instruction Sequence Diagram
Note:
The “Continuous Read Mode” bits M(7-0) must be set to Fxh to be compatible with Fast Read Dual I/O instruction.
